Products >> walking tractors >>

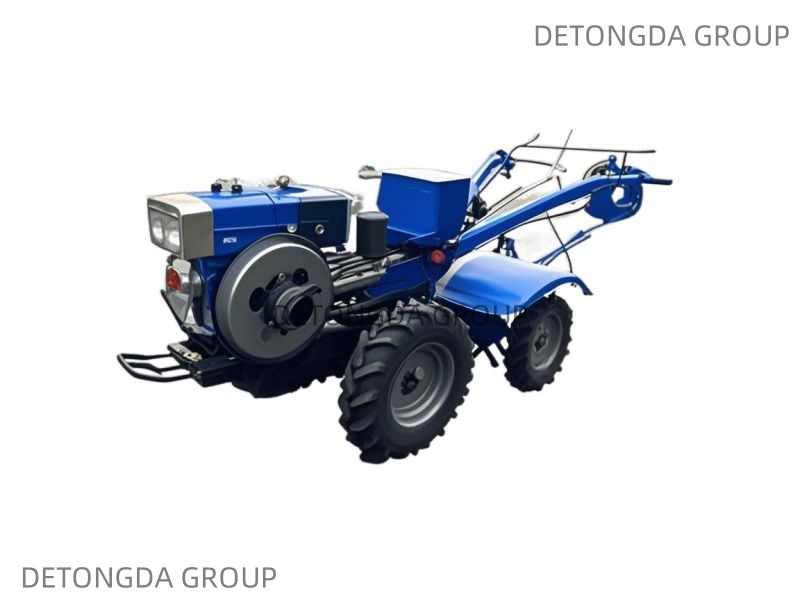

20HP walking tractor

Product No.：2025327161819
Online Inquiry

Product description:

20HP walking tractor

Walking tractor mainly used for farming work, such as tilling, ploughing, raking, bed preparation moving and harvesting in dry or wet fields when suitable implements are matched.

When attached with a trailer, it may be used for transportation, and when power is taken out from its P.T.O. shaft is also a stationary power source for spraying, four milling, rice milling, tuber crops grinding, etc.

Walking tractor is especially suitable for mountain areas and hilly land.

advantages：

1. It adopts gear drive directly, which is of high transmission efficiency.

2. When doing farm work in the deep mud field, the clutch will neither skid, nor wind grass.

3. When operating in fields filled with high straw or intensive seeds

4. The diesel engine is using natural convection circulation for cooling water and the circulating water won't evaporate. No need to add water often. The water temperature is not high and very powerful, which is especially suitable for the farm working in mountainous area and the paddy field or upland in the tropical area.

Product parameters:

Tractor power		20HP
Engine	1110	1100
	Single cylinder,horizontal,4stroke,direct injection	Single cylinder,horizontal,4stroke,direct injection
	110x115	100X115
	1.093	0.903
	13.24	11.03
	14.56	12.13
	2200	2200
	≤244.8	≤246.2
	12	12
	12	12
	Evaporative	Evaporative
	Pressure Splash Spray	Pressure Splash Spray
	Hand Start	Hand Start
	Standard	Standard
	180	155
	diesel	diesel
Chassis	Chassis Model	151
	Rated Traction	2400N
	Dimensions(LxWxH)	26809601250mm
	Min Ground Distance	185mm
	Structure Weight	160kg
	Type of clutch	Double friction disc of constant conjunction
	Type Gr'steenng Gear	Meshing sleeve
	Type Of Brake	Cricoids,Inside,Expansion
	Clutch	-
	Tyre	6.00-12
	Tread	580-800mm
	Style	I-shaped gear
	Semi-Axis	-
	Steel Ring	Standard
Walking tractor weight(KG)		350
Option		Electric start ,light, Condensing cooler and so on.

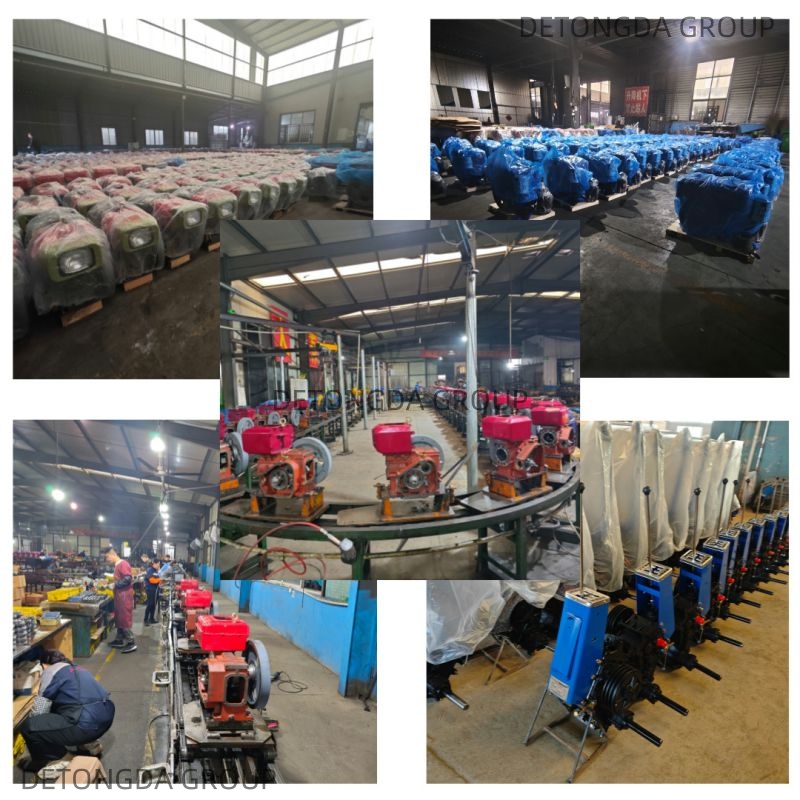

Production :

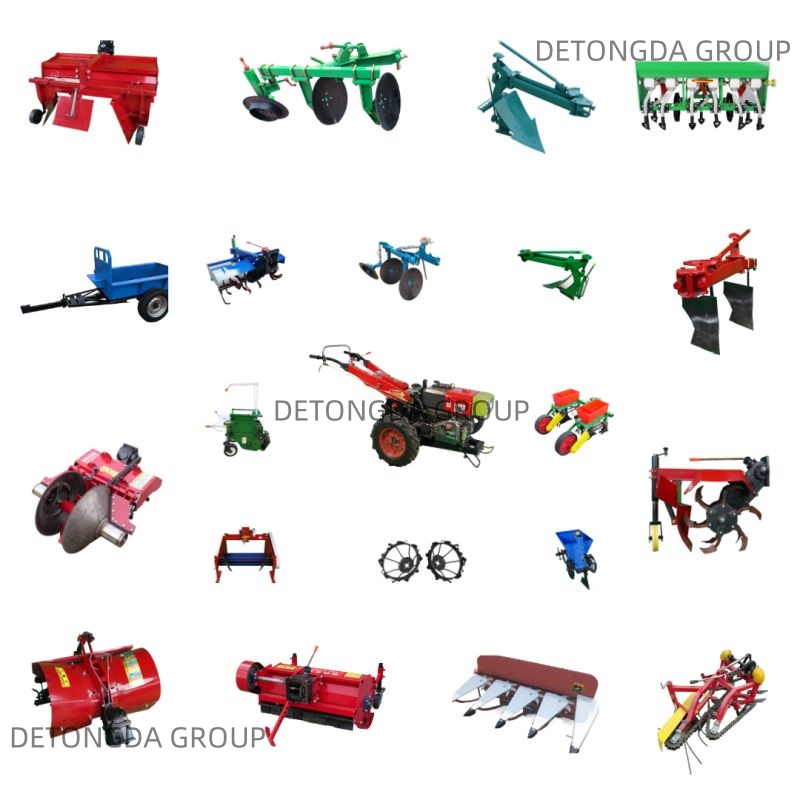

Products:

Packaging and delivery:

FAQ:

1.Q:Are you manufacturer or trade company?
A: We are manufacturer, we have our own factory. Our factory has department for exploitation , producing, sales, after-sell service, packing , warehouse, we can offer you best products and best service.

2.Are you interested in dealership with local company?
A: Yes, we are quite interested in this business cooperation. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.We can discuss more if you also interested.

3. Q: Do you sell accessories for your machine?
A: Yes, all of matching accessories for our machine are on selling, we are willing to supply the matching parts to you with low price.

4.Q: What's your terms of packing?
A: Generally, we pack our goods in wooden cases.

5.Q: What's your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

6.Q: What's your terms of delivery?
A: EXW, FOB, CFR, CIF

7.Q: How about delivery time?
A: Generally, it will take 7 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

8. Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend, no matter where they come from;
3. If you have any feedback that is cherished to us, please send email to us.
9.Q: Do you supply samples?
A: We support sample order .
10.Others: OEM: Support technical changes.
Free train: plant training on installation and maintenance techniques.
QC: Quality inspection before delivery for each unit.
