Product description:

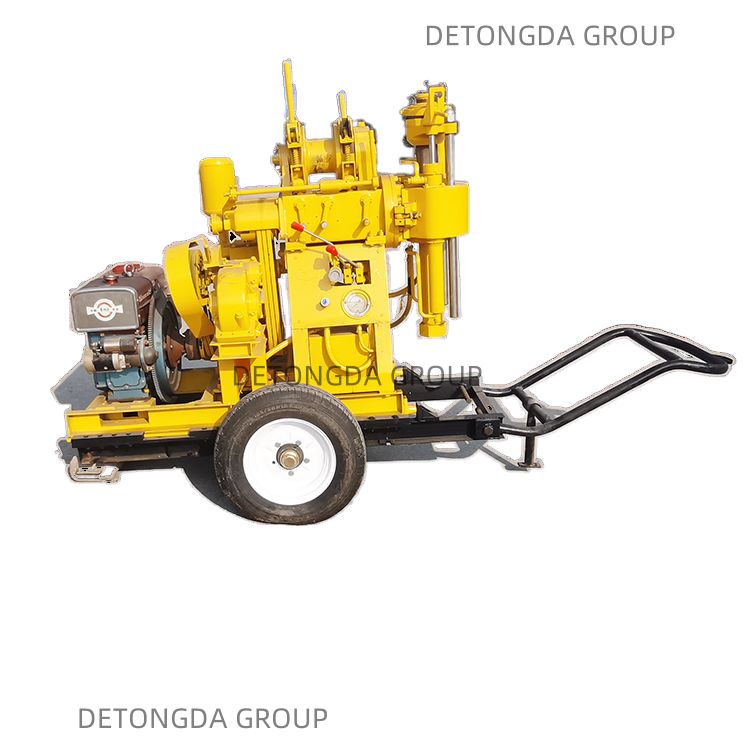

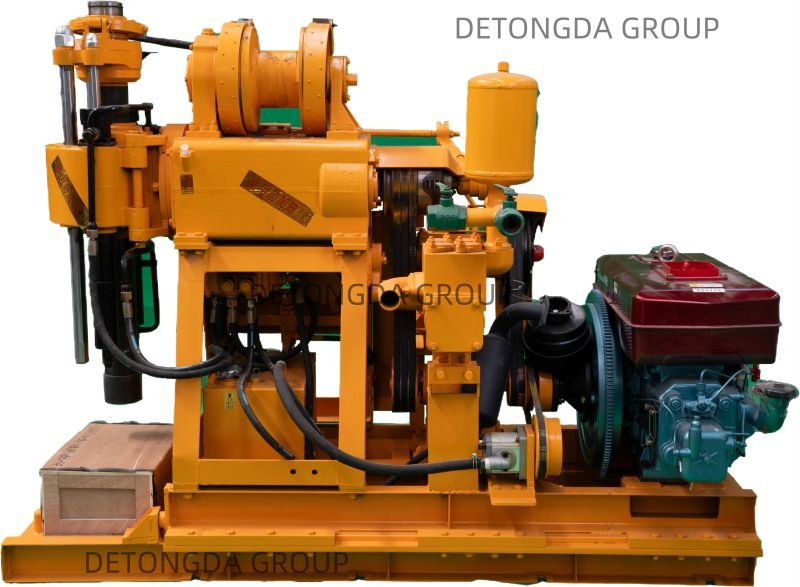

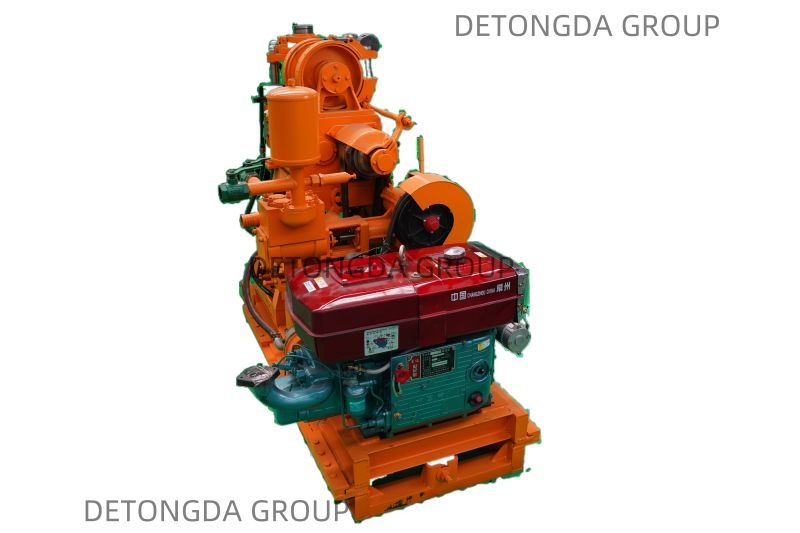

200M DRILLING RIG

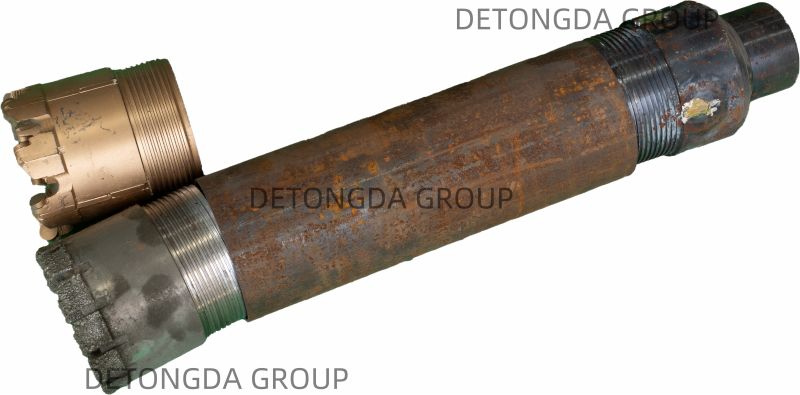

The 200-type drilling rig adds a drilling rig shift slideway on the basis of an ordinary drilling rig, which can realize the rapid replacement of drilling tools, improve work efficiency and reduce labor intensity. This drilling rig is a high-speed drilling rig suitable for drilling projects such as survey and exploration, geophysical exploration, road and construction exploration, and blasting holes. According to the different bottom layers, drill bits such as alloys, diamonds and composite pieces can be used for drilling. It can drill sandy clay and rock formations of levels 2-9.
2. Product features
1. It has an oil pressure automatic feeding mechanism to improve drilling efficiency and reduce the labor intensity of workers.
2. The ball clamping mechanism is used instead of the chuck, which can implement non-stop reversal of the rod, which is easy to operate, safe and reliable.
3. The winch is equipped with a retaining frame to form a double-sided support star wheel structure that can withstand strong impact
4. The four sets of bearings in the vertical shaft box are positioned to ensure that the rotator has sufficient rigidity to cope with complex geological conditions such as gravel layers and pebble layers
5. This machine adopts a tapered clutch with national advanced technology, which has the outstanding characteristics of large torque transmission, easy operation and maintenance-free.

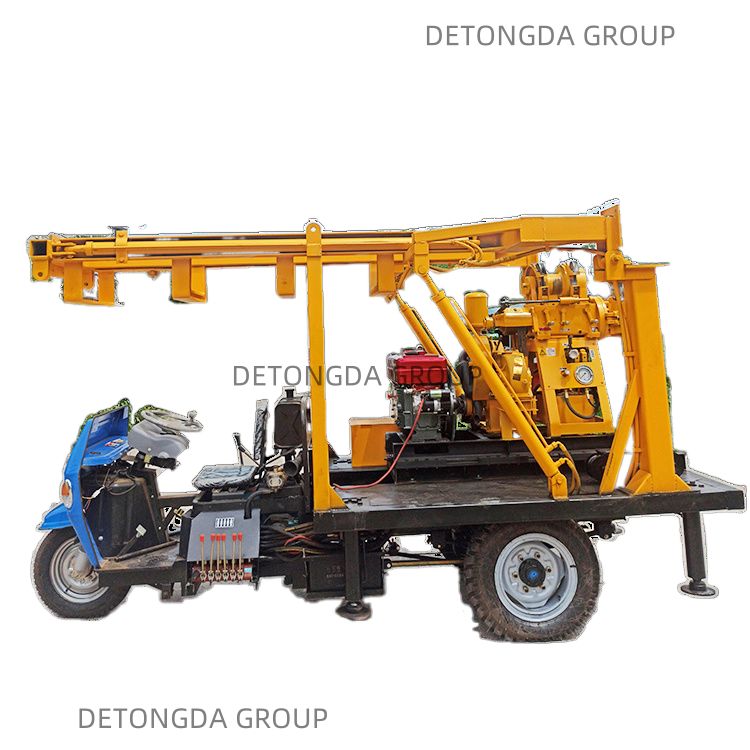

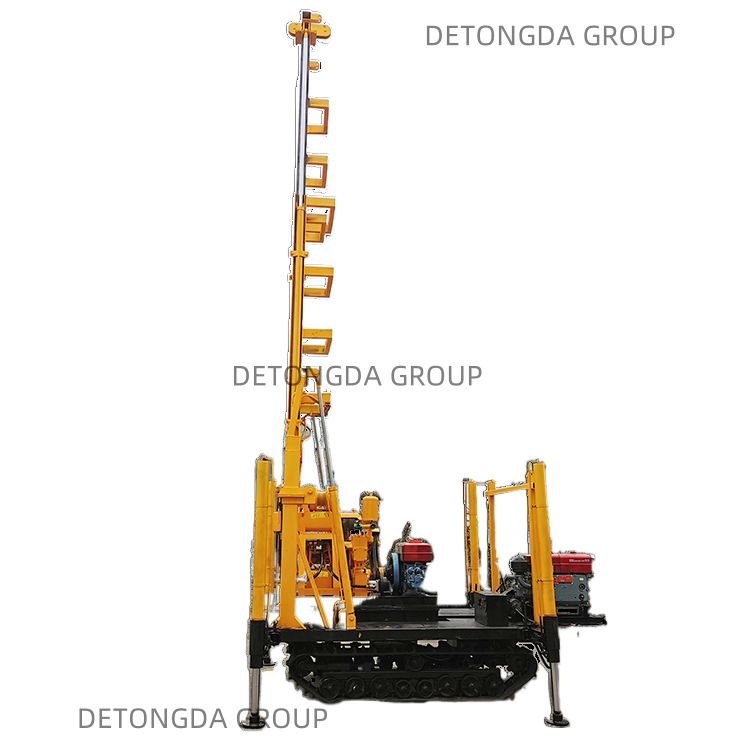

We can produce the machine as your request. Such as depth , chassis mode and so on .

Product parameters:

Details
Drilling depth		200m
Maximum hole diameter		φ75-φ325mm
Final hole diameter		75mm
Active drill rod		53/59*4200mm
Drill rod diameter		φ42-φ60mm
Drilling inclination		90°～75°
Matching power (diesel engine)		15/2200/r/min
Structural weight/dimensions		1150kg/2700*950*1770
Vertical axis
Vertical shaft speed	115/230/505/1010r/min
Vertical shaft travel	450mm
hoist
Single rope lifting force	24kN
Single rope lifting speed	0.12、0.22、0.49、0.95m/s
Drum diameter	φ140mm
Wire rope diameter	φ13mm
Wire rope capacity	35m

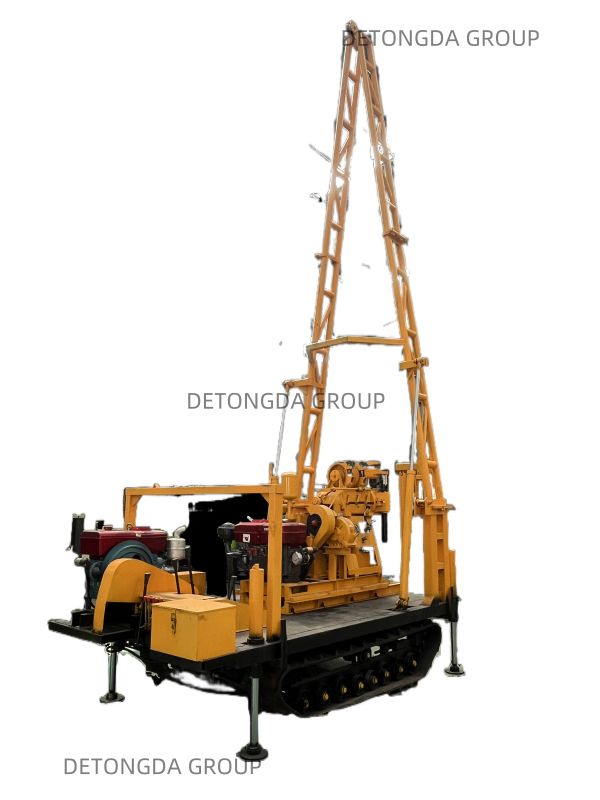

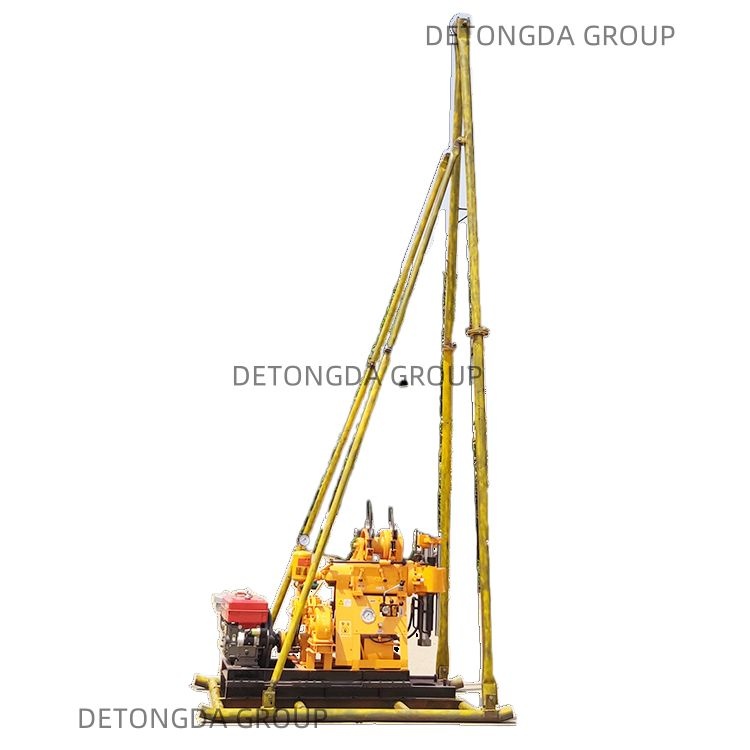

Drilling tower
Rated load	5t
Effective height	6m
Tower leg specifications	φ89mm
Mud pump
Model	BW160
Flow rate	145L/min
Maximum pressure	2Mpa
Number of reciprocating strokes	93times/min
Suction pipe diameter	φ51mm*4.5m
Outlet high pressure pipe diameter	φ32mm*6m

Product :

FAQ:

1.Q:Are you manufacturer or trade company?
A: We are manufacturer, we have our own factory. Our factory has department for exploitation , producing, sales, after-sell service, packing , warehouse, we can offer you best products and best service.

2.Are you interested in dealership with local company?
A: Yes, we are quite interested in this business cooperation. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.We can discuss more if you also interested.

3. Q: Do you sell accessories for your machine?
A: Yes, all of matching accessories for our machine are on selling, we are willing to supply the matching parts to you with low price.

4.Q: What's your terms of packing?
A: Generally, we pack our goods in wooden cases.

5.Q: What's your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

6.Q: What's your terms of delivery?
A: EXW, FOB, CFR, CIF

7.Q: How about delivery time?
A: Generally, it will take 7 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

8. Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend, no matter where they come from;
3. If you have any feedback that is cherished to us, please send email to us.
9.Q: Do you supply samples?
A: We support sample order .
10.Others: OEM: Support technical changes.
         Free train: plant training on installation and maintenance techniques.
QC: Quality inspection before delivery for each unit.
